Torker | MX29 Frame Set

When we re-introduced the Torker Brand, we brought you the biggest of the Big Bikes, the MX26, and people cried out, "Please - We want a 29!" So we listened, and we are giving you the NEW MX29, the MX26's BIG Brother!!

The MX29 combines all of the signature Torker style with a fully modern geometry that will make you a stand out at rideouts with your big BMX brothers. It is the king of the Twin top Tubes. The MX29 can do it all!

Modern Race Geometry:
Pro 29" - 23.75" TT, 17.7" C/S, 11.625" BB Height , 71.5º HA

Details:

• Includes 1 1/8”, 4130 Cro-mo Heat Treated Torker threadless forks
• Seamless 4130 Chromoly tubing
• Traditional dual top tube race frame
• Euro BB Shell
• Exclusive Retro Integrated Headtube
• Double Thick ( 1/4" ) Laser Cut Cro-mo Dropouts
• Modern Chainstay Brace
• Integrated Campy® Headtube
• Rear Spacing is 110mm , Fork Spacing is 100mm Lock Nut to Lock Nut

Uses (but does not include)

• 1 1/8" Integrated Headset
• V Brakes
• 27.2 post
• 28.6 clamp

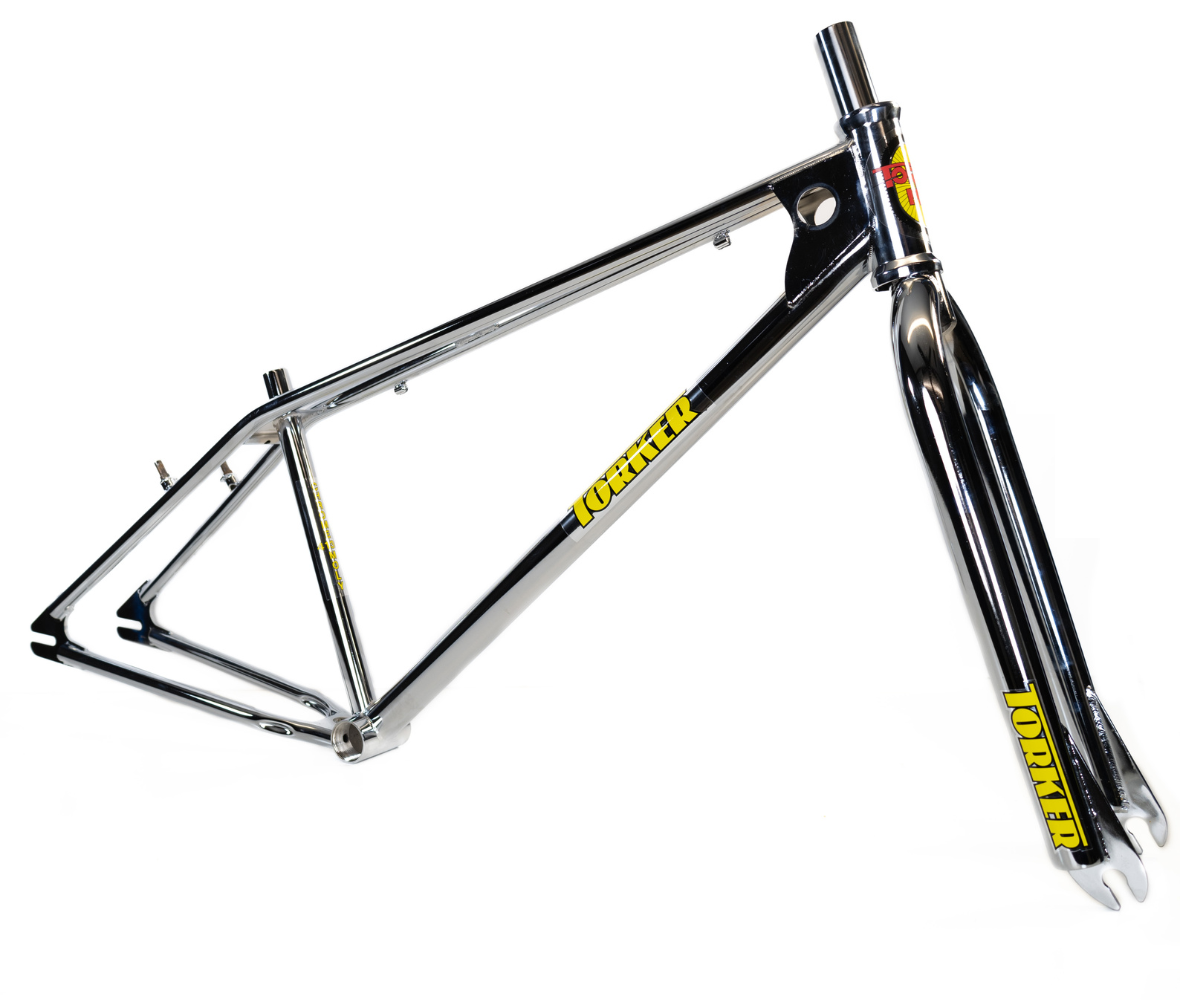

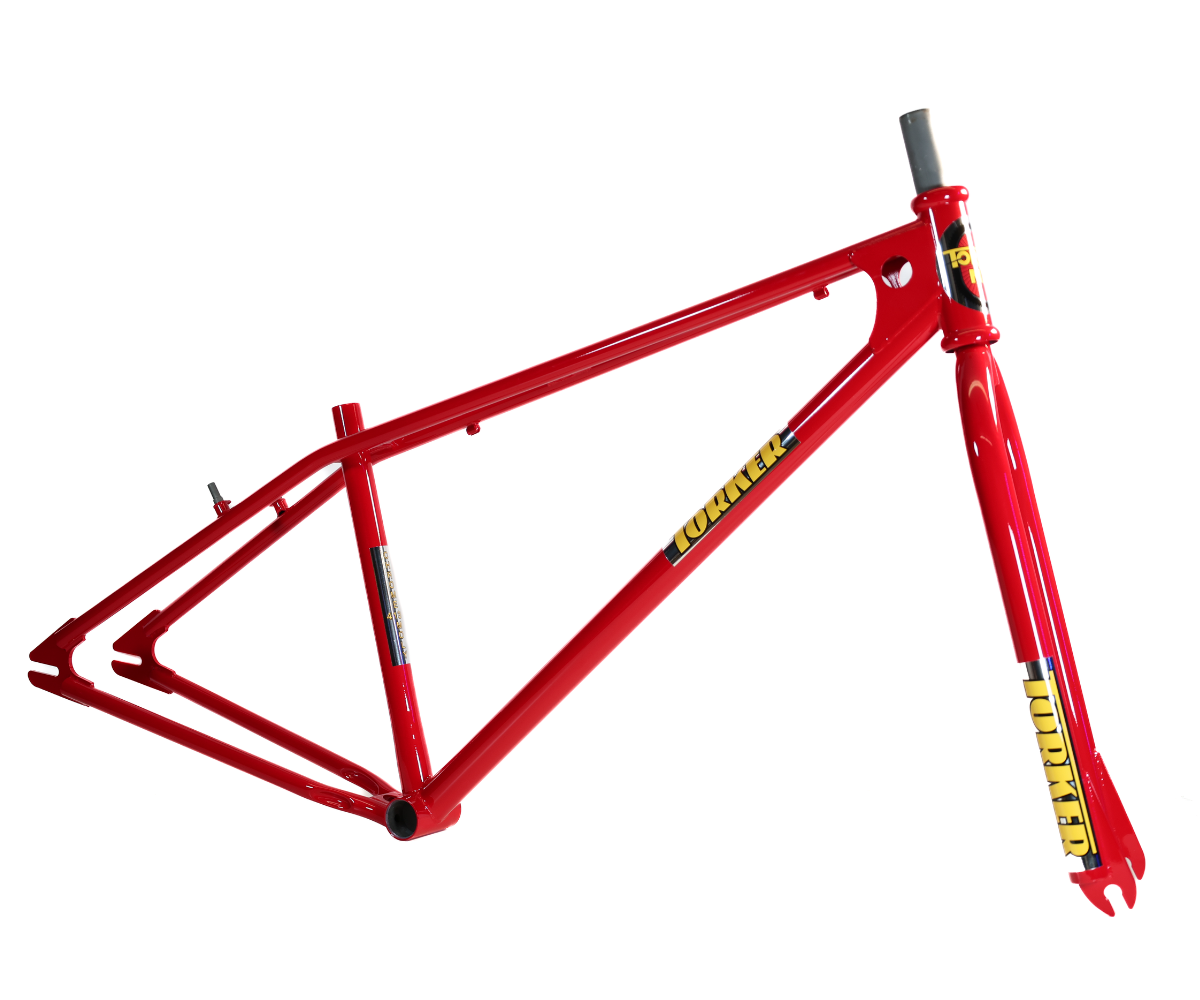

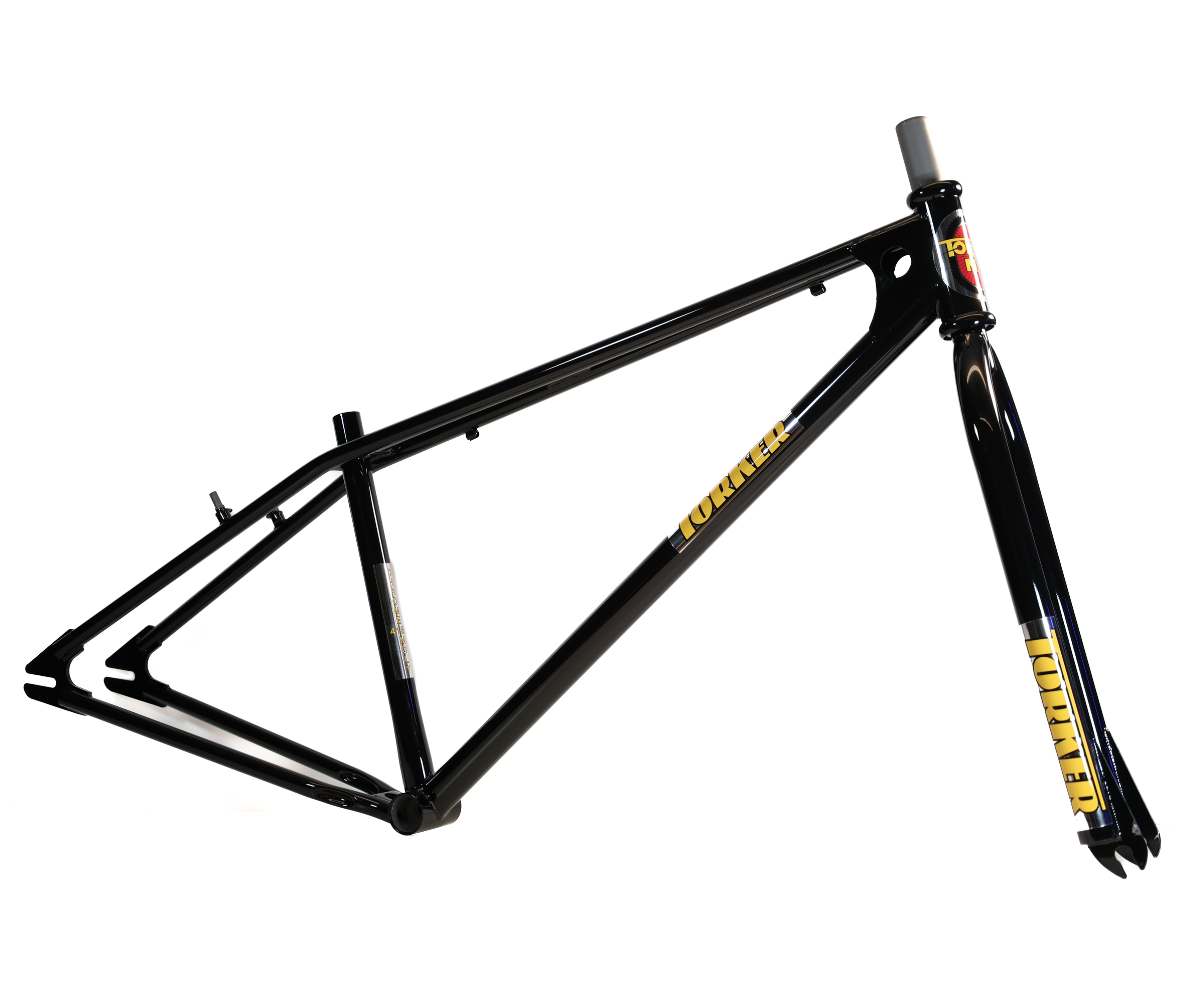

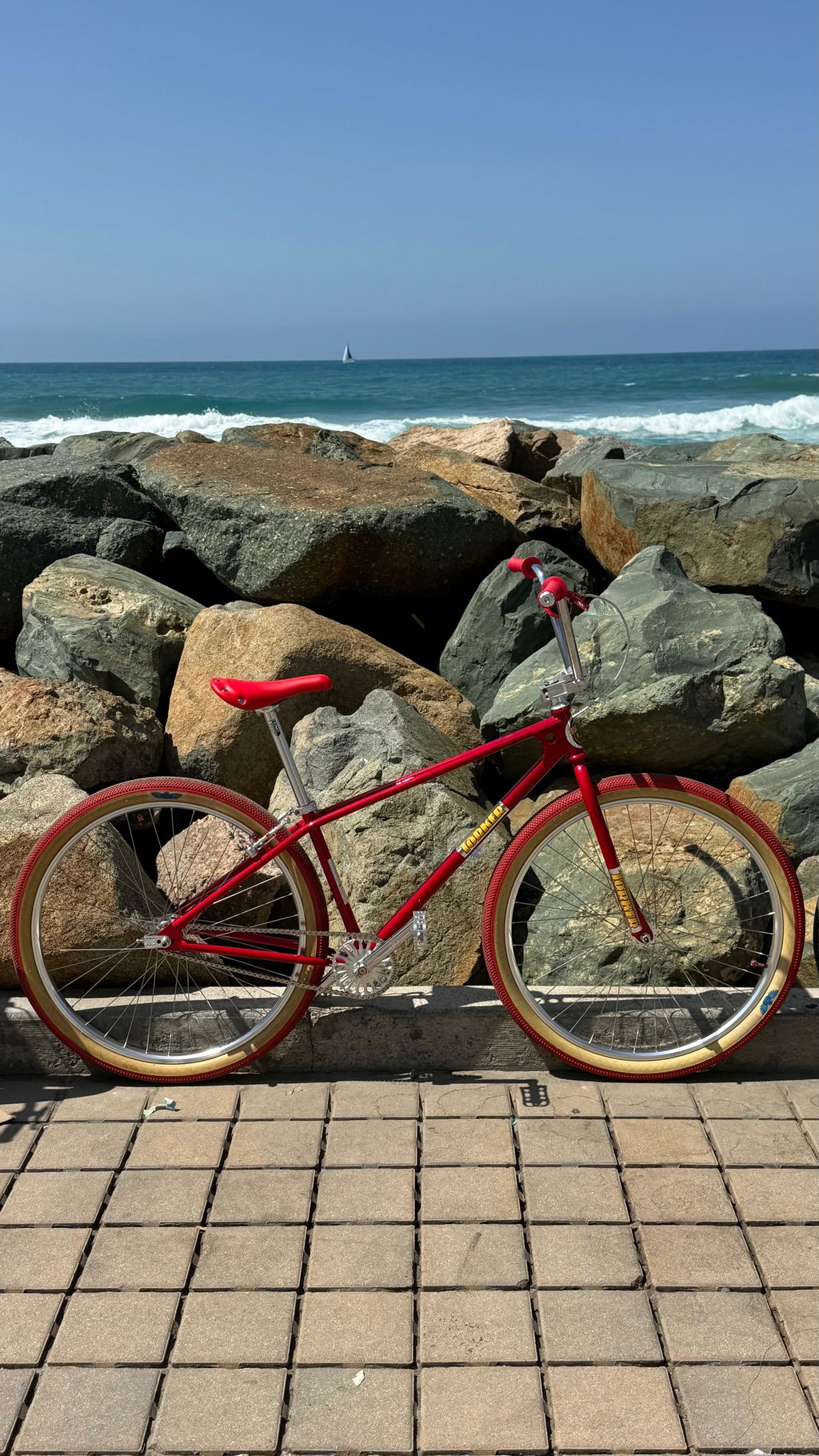

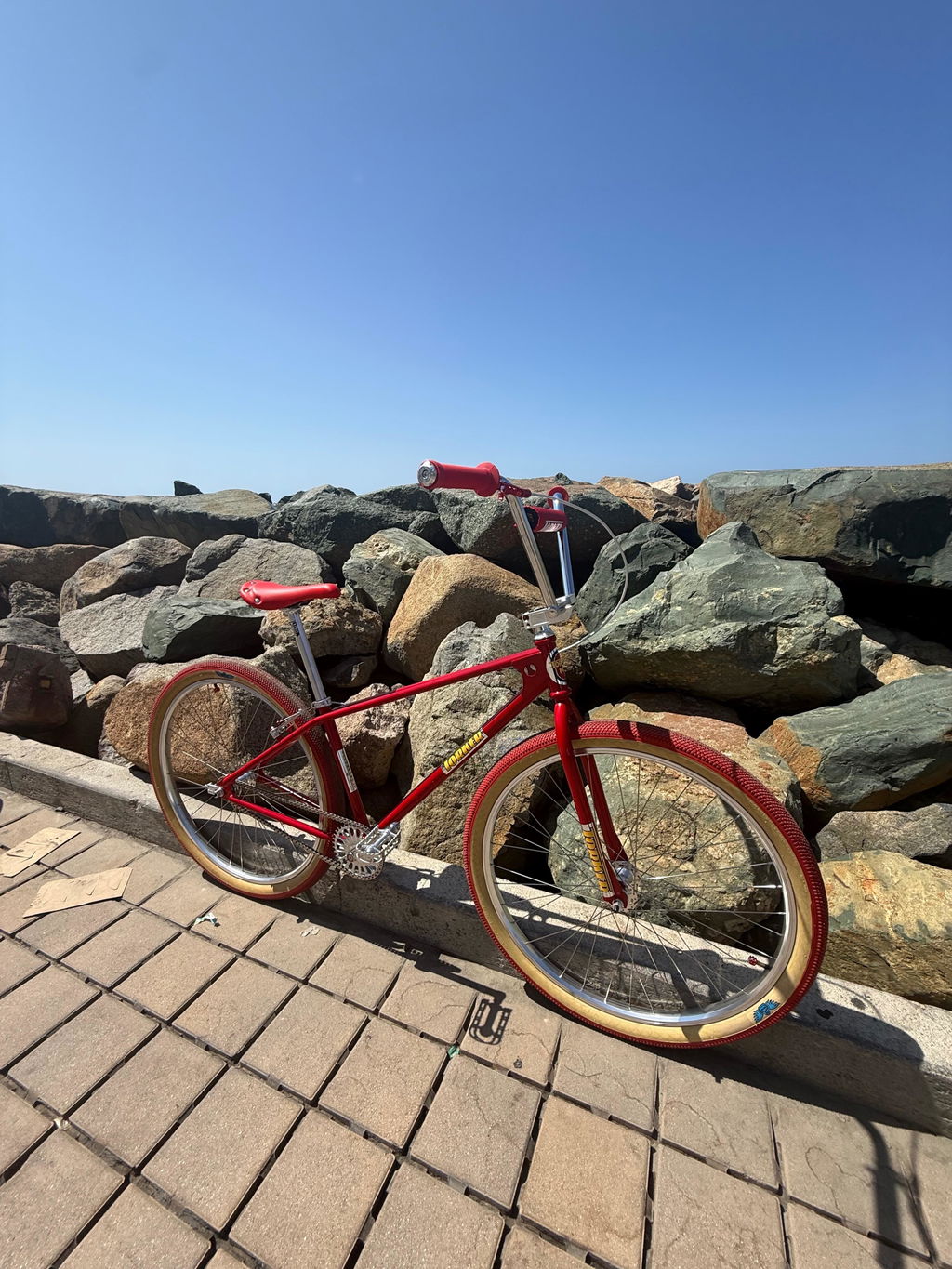

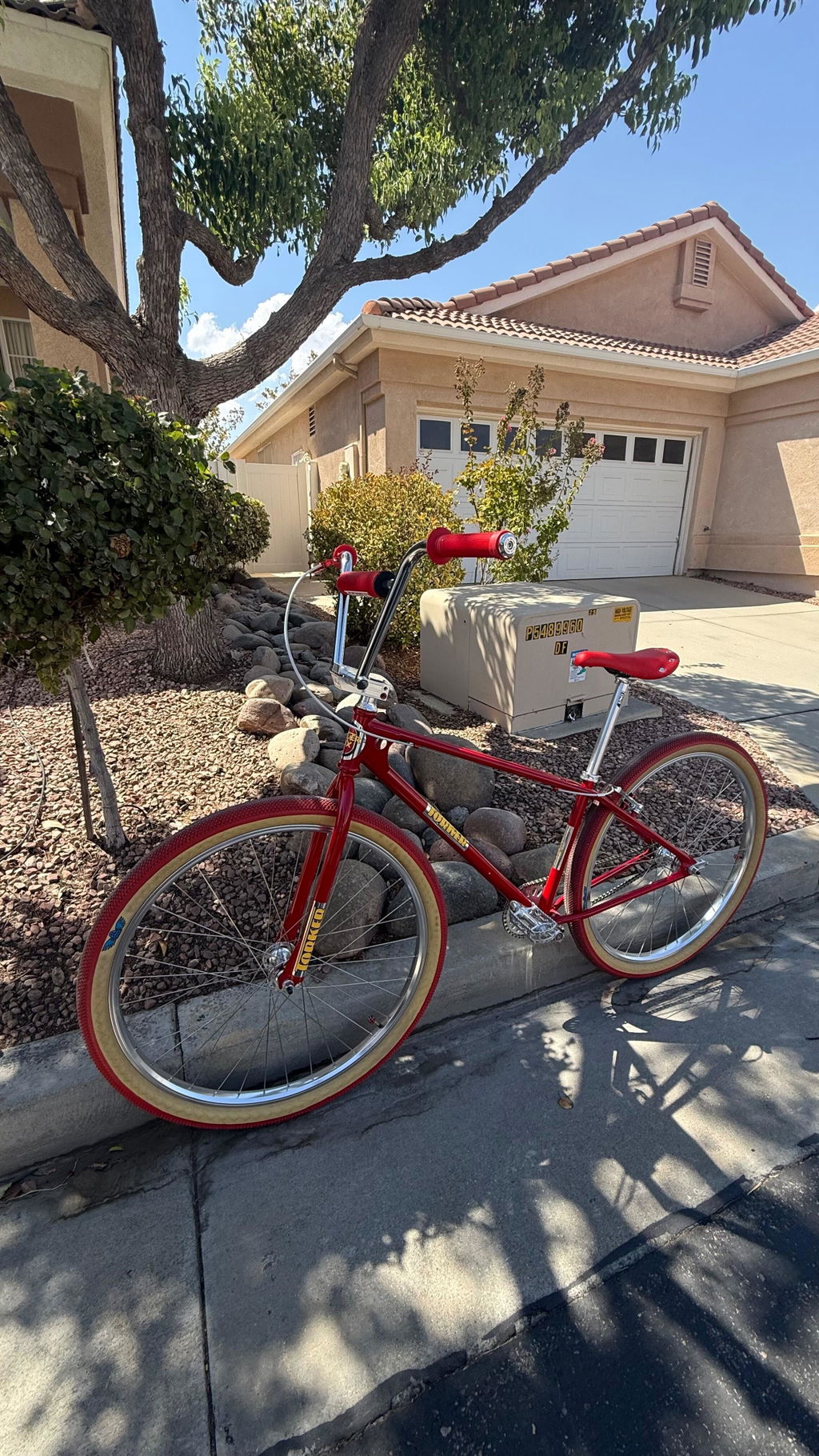

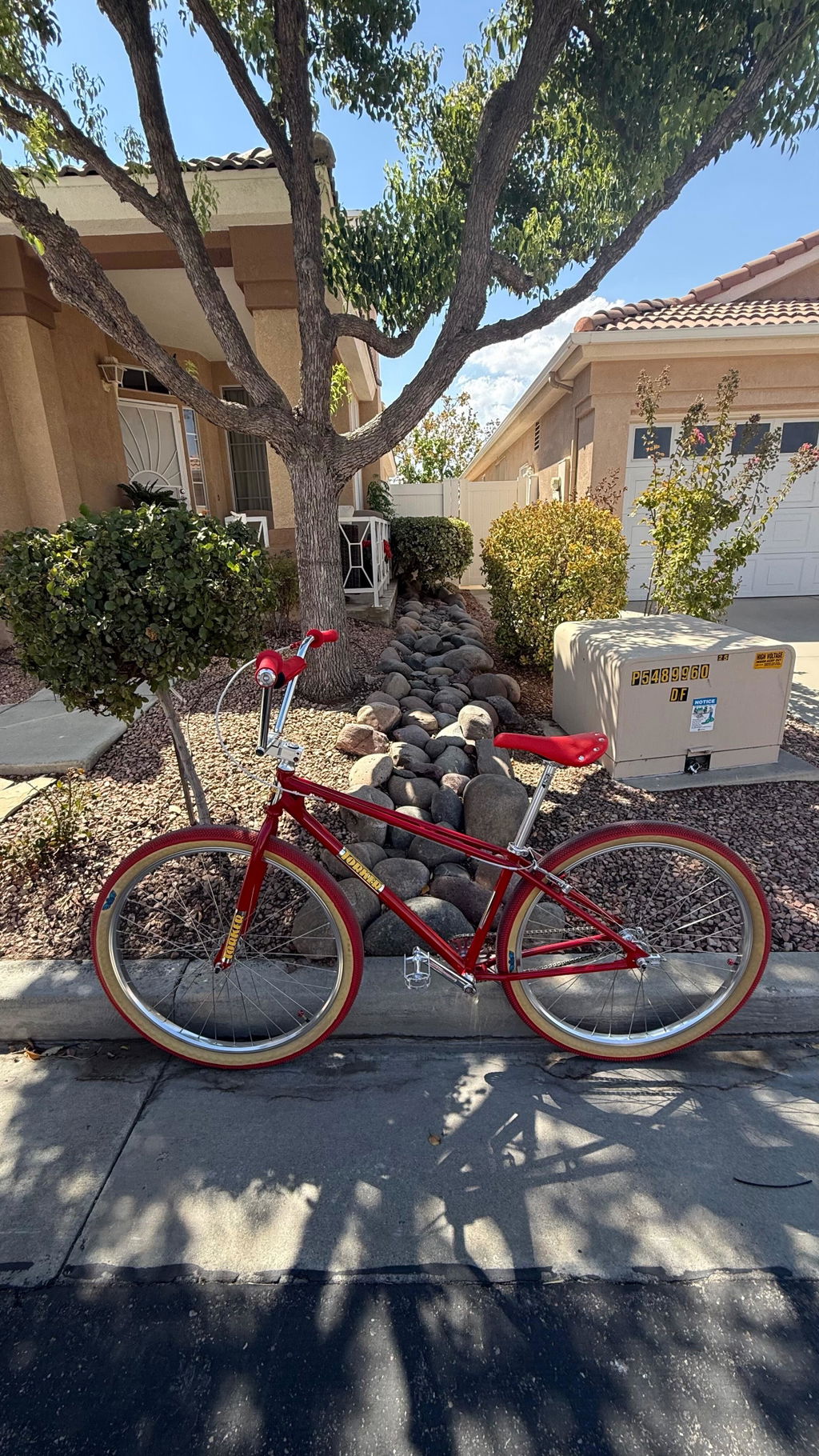

Available in Show Chrome, Racing Red, Bitchin' Blue and Bad Boy Black.

Serial #'s - TBX9001 - TBX90050

Matching pads are available, made exclusively for us by Flite® in Black, Red, Blue or Yellow in Nylon or in Original Vinyl!

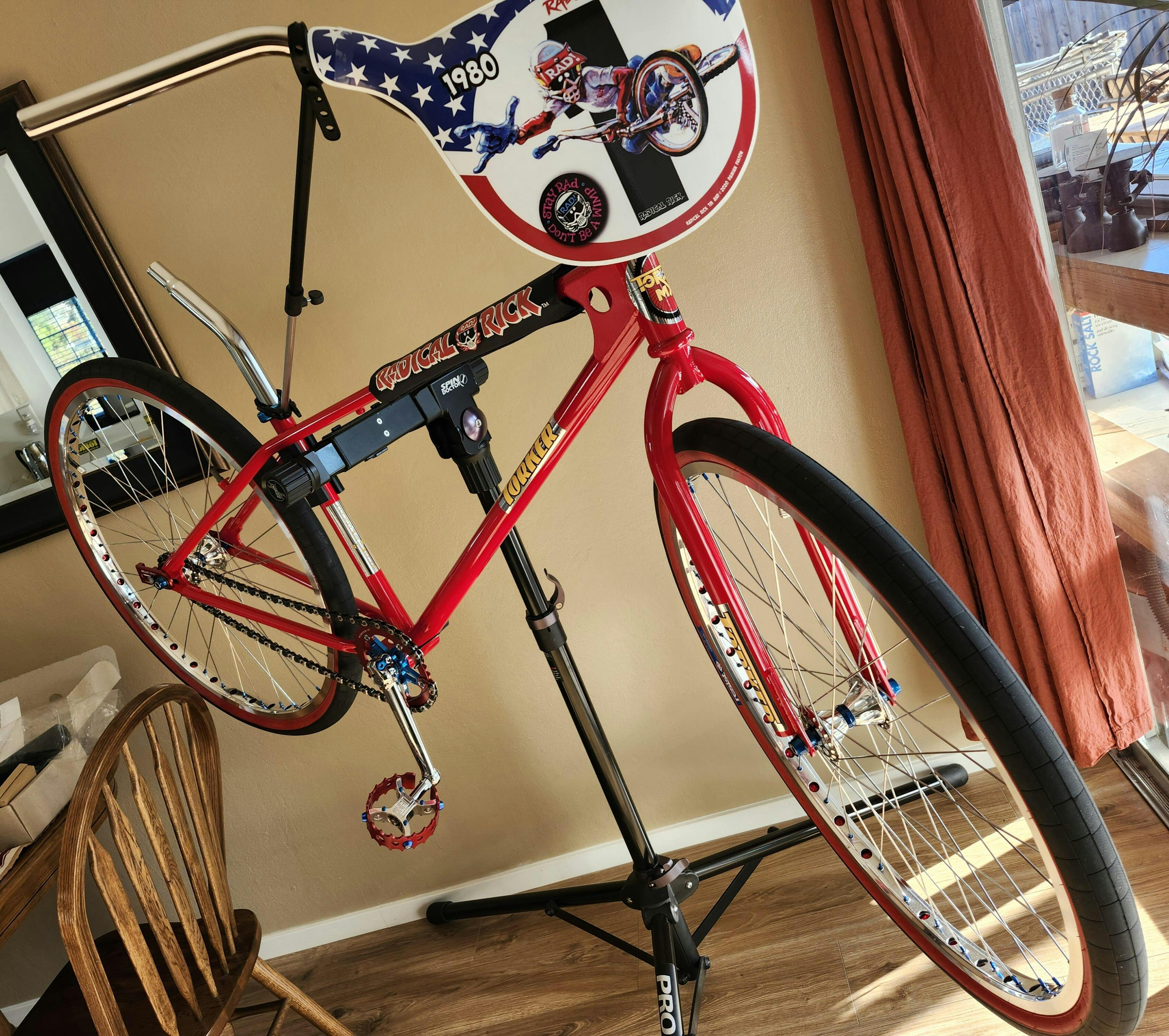

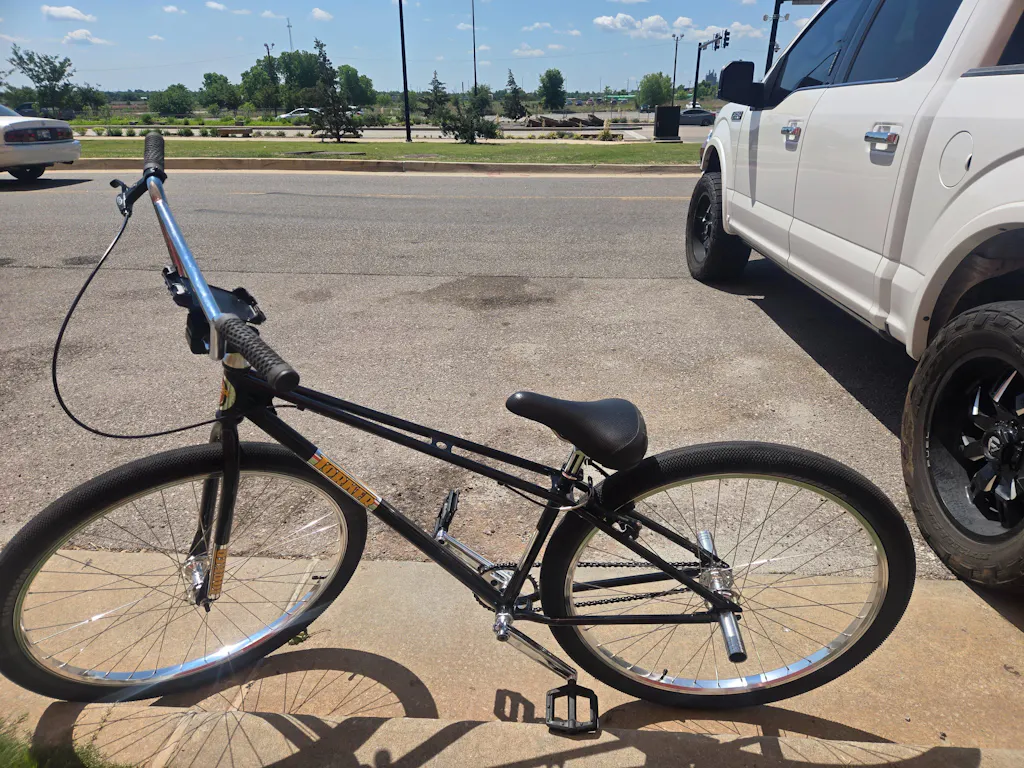

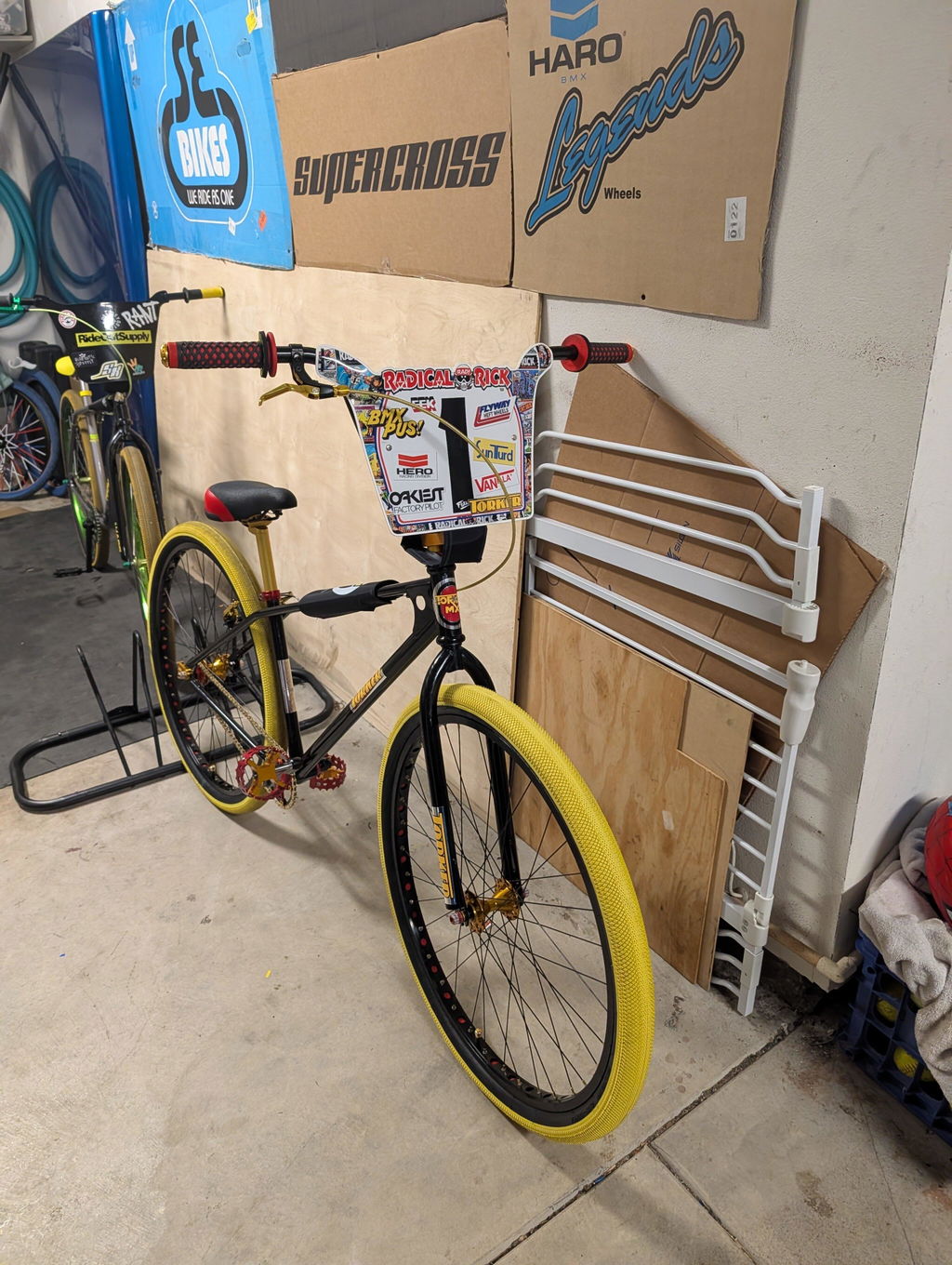

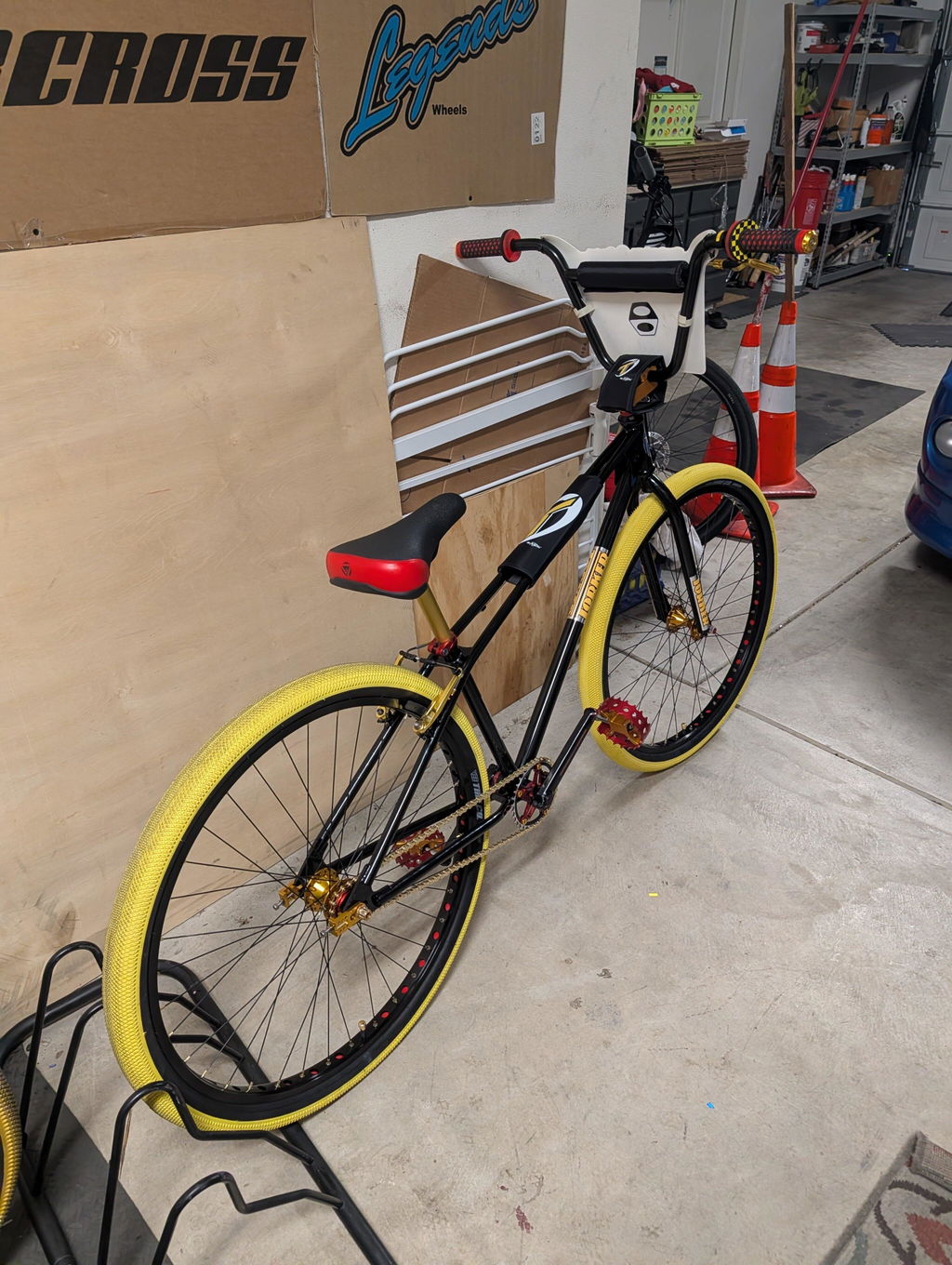

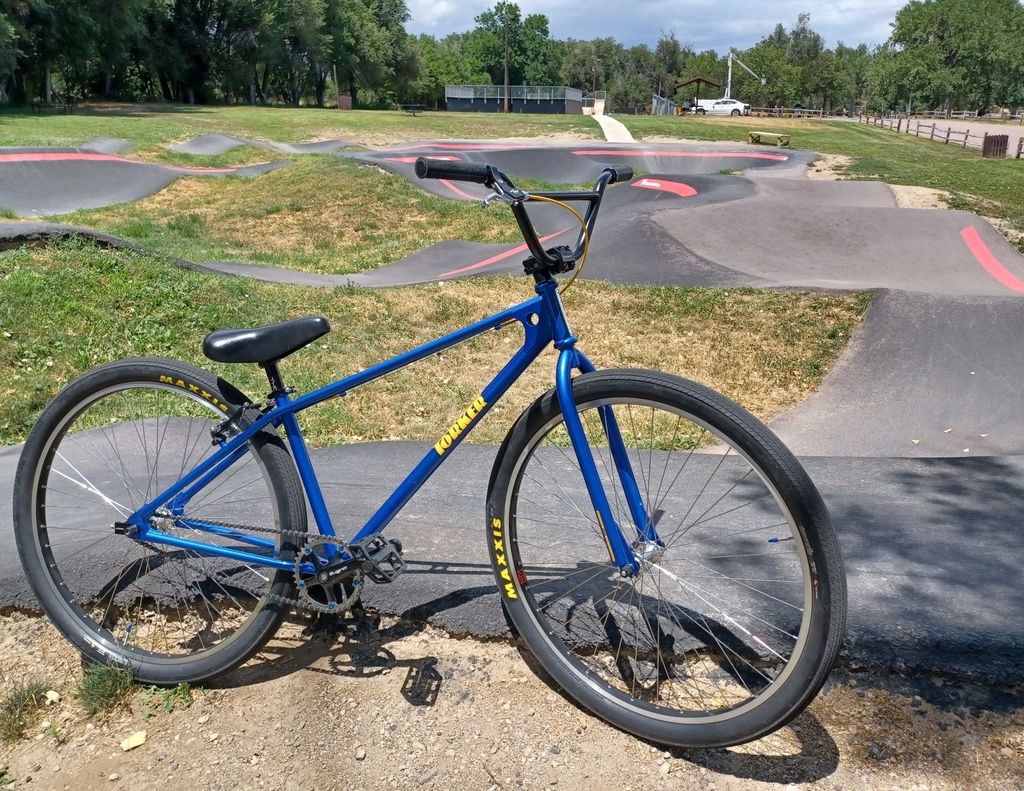

Please post pics of your builds and share your serial # on the Torker Racing Riders Group

Frequently Asked Questions

Why a 29" BMX frame?
29" BMX is the tallest Big BMX format — ideal for taller adult riders, USA BMX Masters, pump track, and rideouts. The larger wheel rolls over rougher surfaces and gives more contact patch on the gate.

What's the difference between the MX29 and MX26?
Wheel size and geometry. MX29 has a 23.75" top tube with 17.7" chainstays — longer and lower for the 29" wheelset. MX26 is 22.75" TT with 15.75" CS for 26" wheels. Pick MX29 if you're 5'10"+ or want maximum presence on the track.

What size rider fits the MX29?
Riders roughly 5'10" and up. The 29" format is the largest Big BMX size available.

What material is the frame made of?
Full seamless 4130 chromoly. Includes 1 1/8" 4130 Cro-mo heat-treated threadless fork. Double-thick (1/4") laser-cut chromoly dropouts. Integrated Campy® headtube with retro look.

What's the rear spacing?
110mm rear, 100mm fork spacing (lock nut to lock nut). 3/8" dropouts front and rear.

What components do I need to build it?
Frame and fork are included. You add: 1 1/8" integrated headset, V brakes, 27.2 seatpost, 28.6 seat clamp, plus stem, bars, cranks, BB, chain, chainwheel, cog, pedals, saddle, 29" BMX-spec wheelset, tires, tubes.

Is the MX29 race-legal for USA BMX?
Yes — meets USA BMX Cruiser and Masters specifications. 29" complies with the maximum wheel size for those classes.
